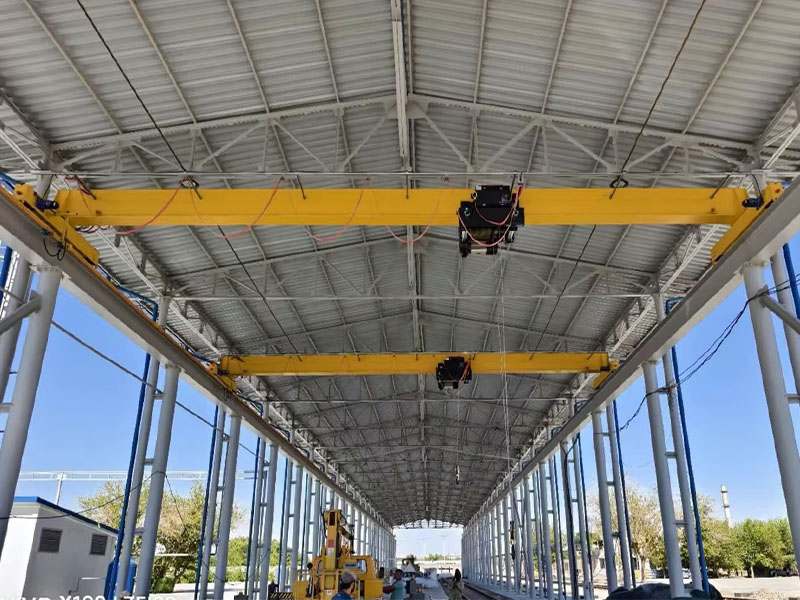

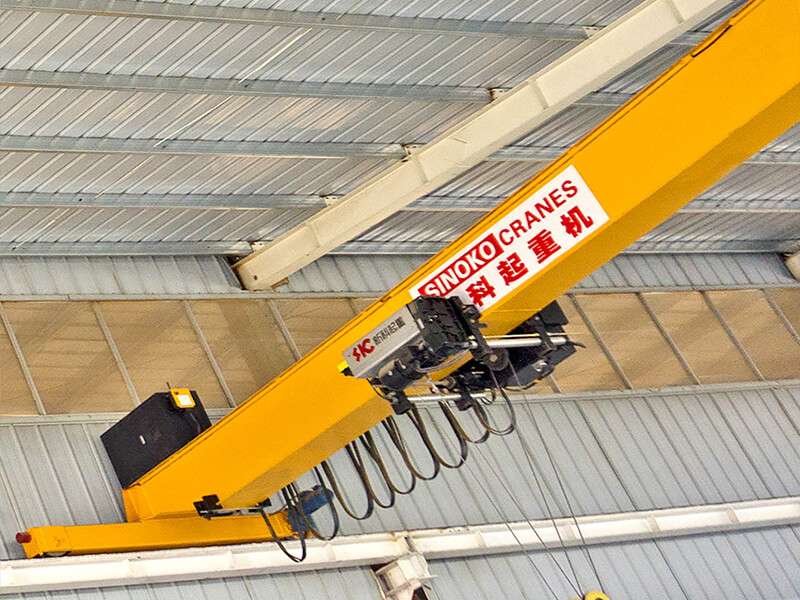

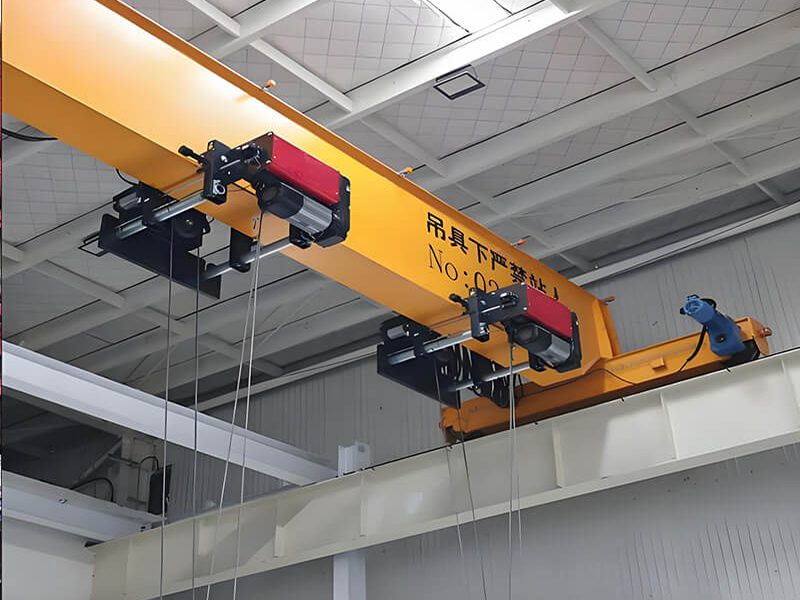

Sinoko 5 ton overhead bridge crane is European Model Bridge Crane equipped with advanced technology, Our European Model Bridge Crane could be made from 5 ton to 500 ton. Smoothly Traveling with inverter control make sure the crane more durable, stable operation, low noise and maintenance free.
With its versatility and robust design, the 5-ton overhead bridge crane serves as a reliable material handling equipment across various industries. Engineered with dependable motors and accessories, it guarantees high-quality and safe operations. Kinocranes Crane, a reputable crane manufacturer in China, brings 15 years of experience in bridge crane production. Our 5-ton bridge crane options can be customized to suit specific working conditions, offering the choice between single or double beams for lifting and lowering configurations.
5 ton Overhead Bridge Crane Parts
The 5-ton Overhead Bridge Crane boasts an array of advanced components and configurations to ensure top-notch performance. It is equipped with Schneider electricals, ABM/Nord/SEW triple gear motors (consolidating the motor, gear box, and brake into a single unit), galvanized high-strength wire rope, self-adjusting disk brakes, durable hard tooth reducers, and programmable lifting limit switches, among other features. These cutting-edge elements contribute to the crane's efficiency, reliability, and enhanced safety during lifting and transportation operations.
 |
|
High Reliability and Safety: The crane exhibits a high level of reliability and safety, with a low maintenance rate. It adheres to FEM2M and M5 work duty standards, boasts IP55 protection class, insulation class F, and offers a continuous rate of 60% (for high-class motors). It also features a 30% higher cooling rate than normal cranes and includes over-temperature protection at 170℃.
Compact and Lightweight Design: The crane's compact design and low dead weight contribute to its small size and low headroom, optimizing space utilization.
Low Noise Operation: The crane operates with minimal noise, minimizing disturbances in the workplace.
Cost-Effective Investment: With its light dead weight and low wheel pressure, the crane reduces the civil work cost of the workshop, providing cost-saving benefits.
Energy-Efficient: The crane's total motor power is significantly lower than conventional designs, resulting in power savings.
Capacity(t) | 5t | 10t | 16t |
Span(m) | 6.5m---28.5m | ||
Lifting height(m) | 3m---30m | ||
Control mode | Pendant control,wireless remote control,cabin control | ||
Lifting speed(m/min) | 2.8 ,8 , 8/0.8 | 2.3 , 5/0.8 7, 7/0.7 | 4, 4/0.4 |
Travelling speed(m/min) | 20,30,45 (Inverter) | ||
Service class(work grade) | a) M2, M3: used in places of mild service, such as workshop and warehouse. | ||
Supply power(three phase power) | 380V 50HZ 3Phase (according to user require) | ||
Hoist type | Wire rope or chain hoist ,single or double speed | ||
Working ambient temperature | -20 °C~ <55°C. | ||
Note | It’s not suitable for lifting blazing & melting metal or toxicant as well as explosion-proof or insulating working conditions. | ||
Don't miss out on the opportunity to enhance your lifting operations. Contact us now to get started with the industry-leading 5-ton overhead bridge crane.
