Wall Mounted Jib Crane

Wall Mounted Jib Crane

BX-type Wall mounted jib crane is a kind of small and medium-sized lifting equipment

Overview:

BX-type Wall mounted jib crane is a kind of small and medium-sized lifting equipment, the complete range is for loads up to 1 tonnes. BX can be operated freely in 3D space. So jib cranes are efficient partners performing their tasks reliably in factory. With their comprehensive product line of jib cranes, it offers flexible and cost efficient material handling solutions for any job in the workplace. Our Jib cranes can be individually tailored for your application.BX-type Wall mounted jib crane is a kind of small and medium-sized lifting equipment, the complete range is for loads up to 1 tonnes.

BX can be operated freely in 3D space. So jib cranes are efficient partners performing their tasks reliably in factory. With their comprehensive product line of jib cranes, it offers flexible and cost efficient material handling solutions for any job in the workplace. Our Jib cranes can be individually tailored for your application. BX-type Wall mounted jib crane is a kind of small and medium-sized lifting equipment, the complete range is for loads up to 1 tonnes.

BX can be operated freely in 3D space. So jib cranes are efficient partners performing their tasks reliably in factory. With their comprehensive product line of jib cranes, it offers flexible and cost efficient material handling solutions for any job in the workplace. Our Jib cranes can be individually tailored for your application.



Features

Jib arm is made of I-beam or weld steel box, depends on capacity and duty group.
Bolted end connection plate for rapid mounting
Safety anchoring with ribbed pillar base
Low-build profile section jib arm for optimized hook height
Power supply via slip-rings for infinite 180° Slewing.
Complete with electrical systems including lockable mains switch and power supply to the hoist
Electrical equipment with class F insulation, protection type IP 54
Operated from floor level via pendant controls

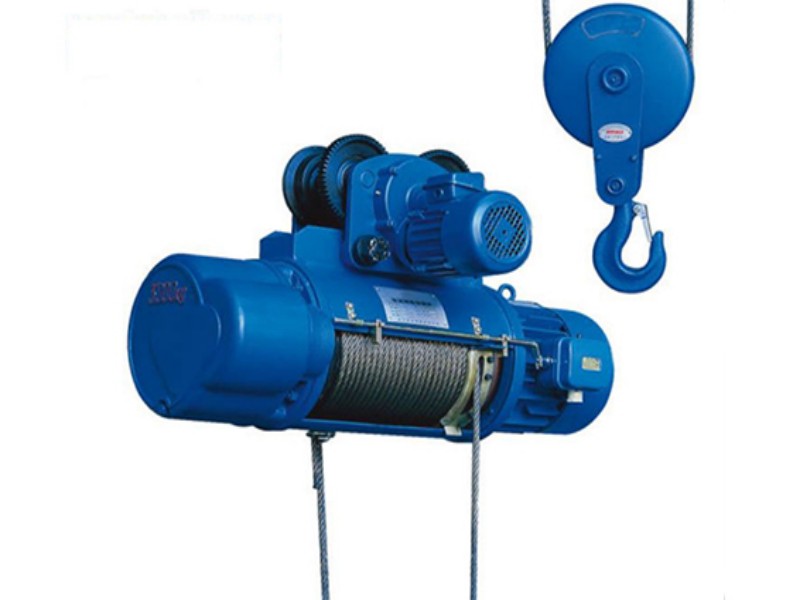

Working with CD/MD electric hoist or chain hoist


Specification




Capacity(t)

0.5t~16t as per requirements

Slewing Radius(m)

2m~10m, or other special radius

Lifting Speed(m/min)

8/0.8m/min (designed as per requirements)

Trolley Speed(m/min)

2 0m/min(designed as per requirements)

Slewing Speed(m/min)

0.8r/min (or designed as per requirements)

Working Duty

A3~A5 depends on application

Power supply

380V,50Hz or other
