Scrapyard Electromagnet Gantry Crane

Scrapyard Electromagnet Gantry Crane

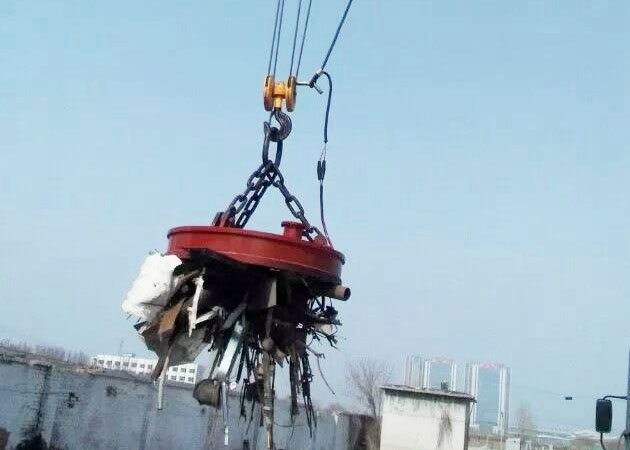

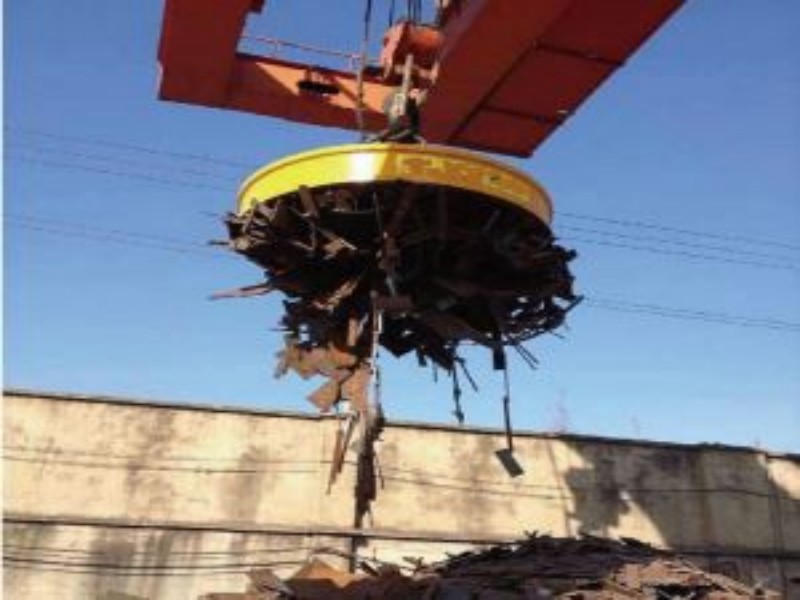

Sinokocrane is focusing on Steel scrap magnetic crane, magnet charging crane, scrapyard electromagnet crane for many years. We have been doing professional design of magnet crane due to the harsh work condition, High temperature Environments, High Dust, Heavy work requirements etc.

Overview:

Sinokocrane is focusing on Steel scrap magnetic crane, magnet charging crane, scrapyard electromagnet crane for many years. We have been doing professional design of magnet crane due to the harsh work condition, High temperature Environments, High Dust, Heavy work requirements etc.

Normally the steel scrap magnet gantry crane working duty is A5~A7. Due to different working efficiency requirements, we will make different proposal for customer.

As following is the advantage of Steel scrap magnet overhead cranes:


Features:
1.Special magnetic circuit design .It has large space and magnetism density.
2.Good insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils
3.The constant control voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4.High temperature type can work in the high temperature. It adopts unique method of heat protection.
5.Simple and convenient installation, operation and maintenance
6.Long working life ,simple structure.
7.High Efficiency.
8. Back battery to avoid risk when the power is suddenly off.



Features

1.Special magnetic circuit design .It has large space and magnetism density.
2.Good insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils
3.The constant control voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4.High temperature type can work in the high temperature. It adopts unique method of heat protection.
5.Simple and convenient installation, operation and maintenance
6.Long working life ,simple structure.
7.High Efficiency.
8. Back battery to avoid risk when the power is suddenly off.

Specification



Model
Current in cold state ( A)
Power in cold state (KW)
Lifting capacity (kg)
Weight (kg)
Overall dimension (mm)
Control Equipment
Cable reel & Cable Connector
Single steel ball
Packed steel ingots
Packed steel scraps
A
B
C
D
E
MW5-70L/1
15
3.3
2500
380/200
120/100
490
700
800
160
90
30
STML-4E-C
JTA75-15-2
DL-102
MW5-80L/1
18
3.96
3000
480/250
150/130
620
800
800
160
90
30
STML-4E-C
MW5-90L/1
26.6
5.85
4500
600/400
250/200
800
900
1090
200
125
40
STQL-7E-C
MW5-110L/1
35
7.7
6500
1000/800
450/400
1350
1100
1140
220
150
45
STQL-9E-C
JTA100-15-2
DL-102
MW5-120L/1
45.5
10
7500
1300/1000
600/500
1700
1200
1180
220
150
45
STQL-14E-C
MW5-130L/1
54
11.9
8500
1400/1100
700/600
2060
1300
1240
250
175
50
STQL-14E-C
MW5-150L/1
71.2
15.6
11000
1900/1500
1100/900
2830
1500
1250
350
210
60
STQL-19E-C
MW5-165L/1
75
16.5
12500
2300/1800
1300/1100
3200
1650
1590
370
230
75
STQL-19E-C
MW5-180L/1
102.4
22.5
14500
2750/2100
1600/1350
4230
1800
1490
370
230
75
STQL-25E-C
JTA200-15-2
DL-202
MW5-210L/1
129
28.4
21000
3500/2800
2200/1850
7000
2100
1860
400
250
80
STQL-32E-C
MW5-240L/1
154
33.9
26000
4800/3800
2850/2250
9000
2400
2020
450
280
90
STQL-38E-C
