QC Type Scrap Metal Lifting Electromagnet Crane

QC Type Scrap Metal Lifting Electromagnet Crane

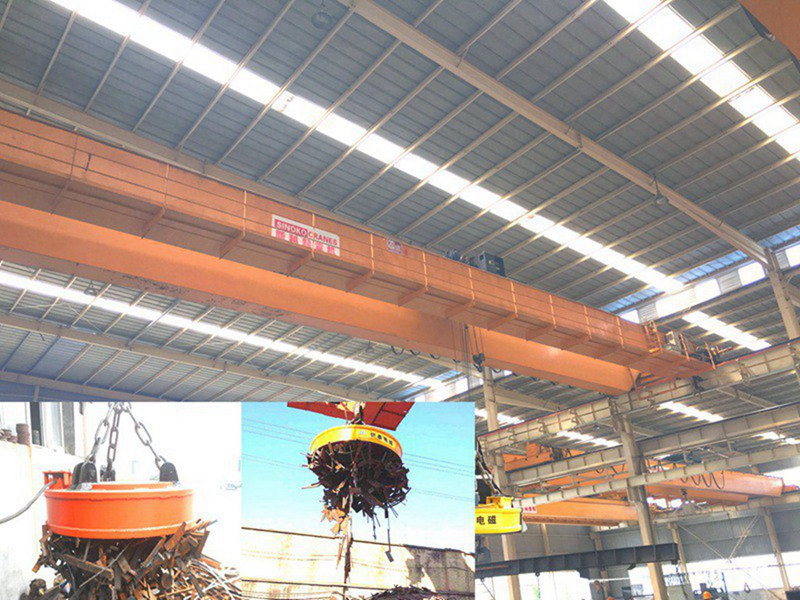

Scrap Metal Lifting Electromagnet Cranes is consists of bridge, crane traveling mechanism, trolley, electric equipment and electromagnetic chuck.

Lifting Capacity: 5t ~32t

Span: 7.5m~35.5m

Lifting Height: 5m-30m

When you demand a durable and dependable electromagnet overhead crane, you can trust Sinoko Magnetics to provide the tools that you need.

Overview:

QC Electromagnet Cranes Product Description

Magnet Handling Overhead Bridge Crane is consists of bridge, crane traveling mechanism, trolley, electric equipment and electromagnetic chuck. Both traveling mechanism and trolley motors are special motors for cranes, which have large starting torque and loading capacity. Magnetic is retentive 10 minutes after power shut. The shape of electromagnet can be designed according to adsorptive goods.

Electromagnet Cranes Application

Magnet Handling Bridge Crane very convenient for application in loading, unloading, and moving iron or steel blocks, cylinders and so on. Permanent Magnetic crane are the most ideal lifting facility for factories, docks, warehouses and transportation, it also role in metallurgy, mining, machinery industry, transportation etc. hoisting steel guide magnetic materials.

Lifting Electromagnets Crane Project


Features

1. Material: All compression structural part of crane's components chosen material with fine quality and meet regulation. The important material has quality guarantee and inspection report.

2. Welding: In view of important welding seam and stress is more than tension weld of 70% allowance stress, conducting fault detection check and take out 5% weld length by ultrasonic test. Inspection report provided to user.

3. Magnetic chuck: Lifting Magnet Series MW5 is used for lifting and transporting steel scraps. It is suitable for transferring cast ingots and various kinds of steel scraps. It has huge magnetic force and can attract lots of steel scraps at one time. The trolley is designed to have slewing mechanism. So the lifted steel bar can change direction freely.

4. Motor: Drive motor must use China Top Brand: Jiangte Motor. Manufacturer have good achievement used and provided detailed and actual parameter prove that it is good performance product. Insulation class >= F; Protective class >= IP54.

5. Electric system: Inverter from famous brand ABB can make lifting and traveling in any speed you want specifically for your work. All mechanism is controlled by PLC.

6. Control panel: 3 ways are optional based on budget or need: Cabin with joystick panel, wireless control panel or pendent control panel.

7. Painting: All steel is treated by sand blasting before doing paintings. There are 3 layers of paintings. The bottom layer is zinc painting to prevent from rusting. The color of top surface should be average.

8.Safety System: mechanical limit switch: overload limit, height limit, rail end stop limit for traveling. Electric protection: short circuit protection, lose phase protection, low-voltage protection, power failure protection, over current protection.



Specification


Lifting Capacity5t ~32t
Span7.5m~35.5m
Lifting Height5m-30m
Main lifting Speed(m/min)1.5 ~15 m/min ABB Brand VFD Control
Trolley traveling Speed(m/min)3~30 m/min ABB Brand VFD Control
Crane traveling Speed(m/min)5~50 m/min ABB Brand VFD Control
Working classM5-M6
Power supply380V, 50Hz, AC, 3-Phase our Customized
Control MethodCabin Control/ Radio remote control/ Pendent line control
Main Electric Parts BrandSchneider/ ABB
Motor BrandABB/SIEMENS
Level of protectionIP54
Isolation GradeClass H
Working temperature-20~50℃
Safety FeatureLifting and travelling limit switches; Emergency Stop; Loss voltage protection; Grounded protection; Overload protection; Short circuit protection; Overheating protection; Over speed protection; Over current protection; Faulted phase protection


Kindly please provide the following information when sending enquiry to us.

Load capacity
(       )
Tips:5t ~ 20t
Span
(       )
Tips:10.5m-31.5m
Lift height
(       )

voltage
(       )
380V 50Hz AC 3-phase or please note
Working Class
(       )
Tips: A5 - A7 if you don't know, please not
Hours per day
(       )

Control way
(       )
Tips: remote control, cabin control or pendent control
Lifting Speed
(       )
Tips: single speed or double speed
Please feel free to send us your detailed requirements, you would be satisfied with our service.
