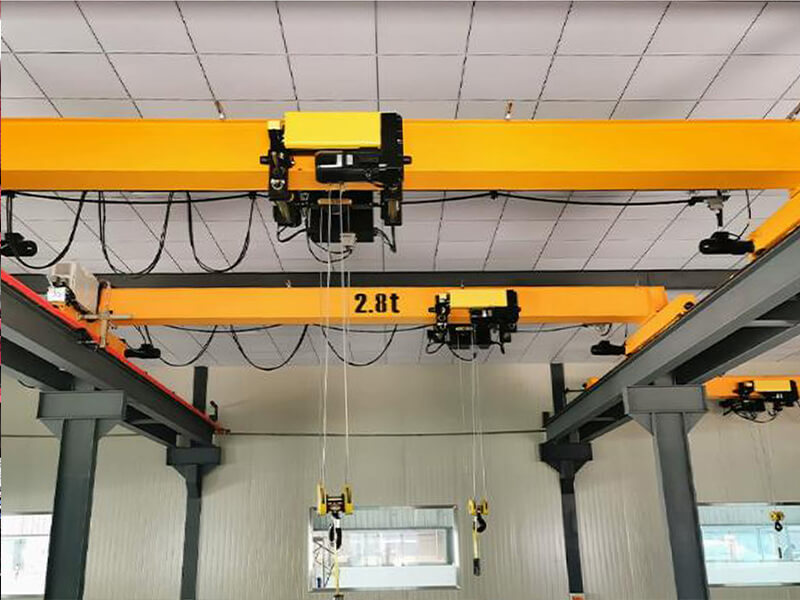

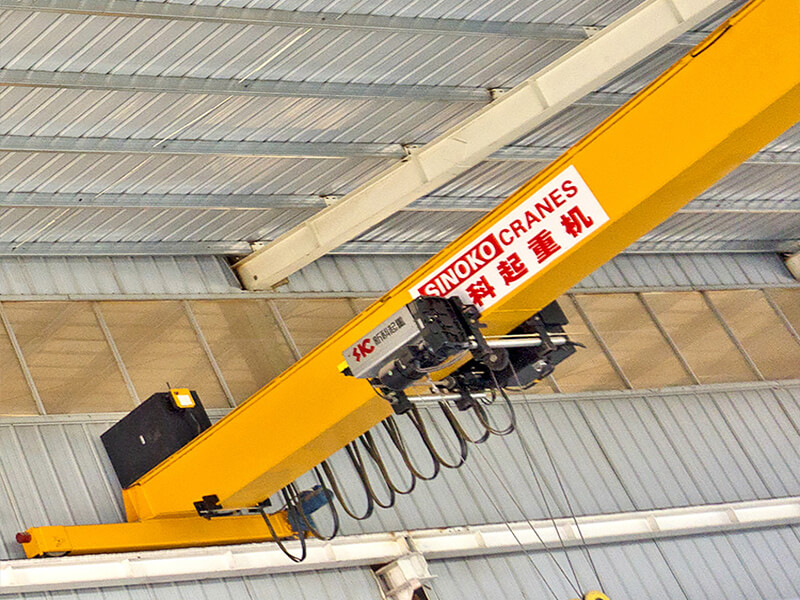

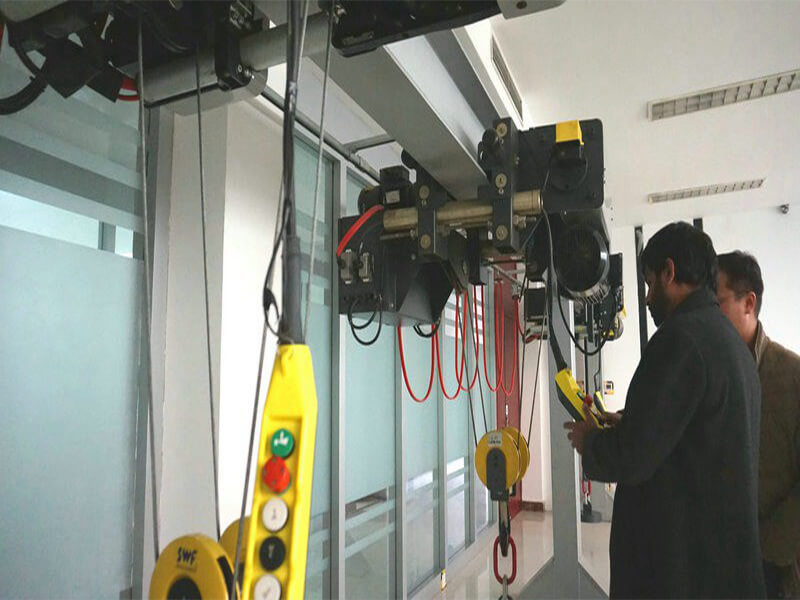

10 ton 15 ton Electric Hoist Bridge Crane

10 ton 15 ton Electric Hoist Bridge Crane

European type electric hoist bridge crane is modified as compact integrated structure design.

Overview:

European type electric hoist bridge crane design is following FEM standard.
Lifting Motor: Germany original dual speed motor, all motors are using cylindrical rotor. Motor protection grade is IP54. Insulation Grade is F grade. Motor have advantage of fast speed, low noise, long life span.
Gear Box: Gear box body use aluminum alloy material, light weight, corrosion resistance.
Brake Device: Double disc electromagnetic disc brake are equipped at the motor end.
Rope, Drum & Rope Guide: All of those parts are made from seamless steel pipes manufactured by high precision CNC machine. Rope Tensile Strength is 2160N/mm2 Italy brand rope.


Features

1. Use optimized computer design box type girder as main support girder.

2.Low height of trolley with steel rope hoist, which makes hook size more reasonable and  wider work scope.
3. Unique wheel frame design, help to adjust balance and install, stable structure.
4. Motor protection class is IP54, F class insulation and equipped with overload protection equipment.(optional)
5. Specially designed gearbox for crane, adopts oblique gears, self-lubrication.
6. Control stick could be connected with trolley, freely move on main girder separately and can also control the travelling speed according to the different depth of bottoms.

Specification


Capacity (kg)

3200

5000

6300

8000

10000

12500

Lifting Height (m)

6/9/12/15/18

Lifting Speed

(m/min)

5/0.8

5/0.8

5/0.8

5/0.8

5/0.8

5/0.8

Lifting Motor (kw)

3.2/0.45

6.1/1

6.1/1

9.5/1.5

9.5/1.5

12.5/2

Traveling Speed

(m/min)

5/20

5/20

5/20

5/20

5/20

5/20

Traveling Motor (kw)

0.25*2

0.37*2

0.37*2

0.37*2

0.37*2

0.55*2

Wire Rope

Breaking

Force

2160N/mm^2

Safety

factor

4.5:1

Insulation Duty

F

Control Panel

IP65

Working

Class

(FEM/ISO)

Lifting

2M / M5

2M / M5

2M / M5

2M / M5

2M / M5

1 Am / M4

Traveling

2M /M5

2M /M5

2M /M5

2M /M5

2M /M5

2M / M5

Dimension
(mm)

H

500

520

520

550

550

550

C

420

425

425

580

580

580

Speed (m/min)

1.2/1.4/1.4/1.7/2

1.4/1.4/1.4/1./2

1.4/1.7/1.7/1.7/2
