Steel Mill Used Casting Double Girder Overhead Crane for Molten Steel Lifting

Steel Mill Used Casting Double Girder Overhead Crane for Molten Steel Lifting

Overhead crane is a type of bridge crane found in foundry plant, industrial environments, such as lifting the casting ladle in steel mill.

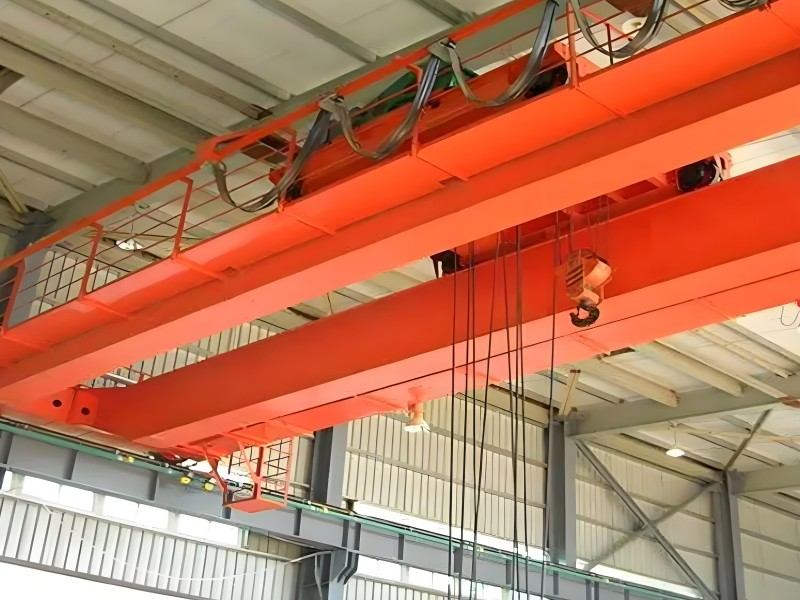

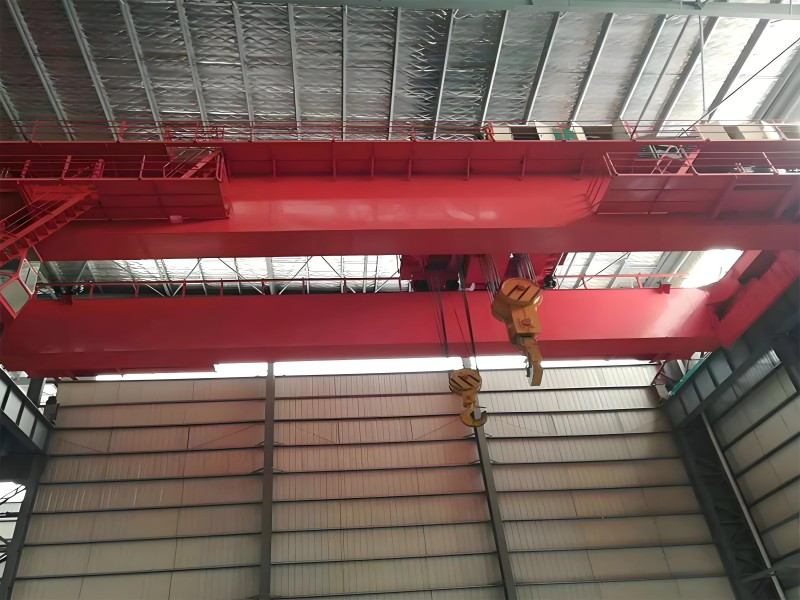

The double girder overhead bridge crane consists of parallel runways with a traveling bridge spanning the gap. A hoist, the lifting component of a crane, travels along the bridge.
In many instances the cost of a bridge crane can be largely offset with savings from not renting mobile cranes in the construction of a facility that uses a lot of heavy process equipment.

Overview:

Molten Steel Lifting Crane

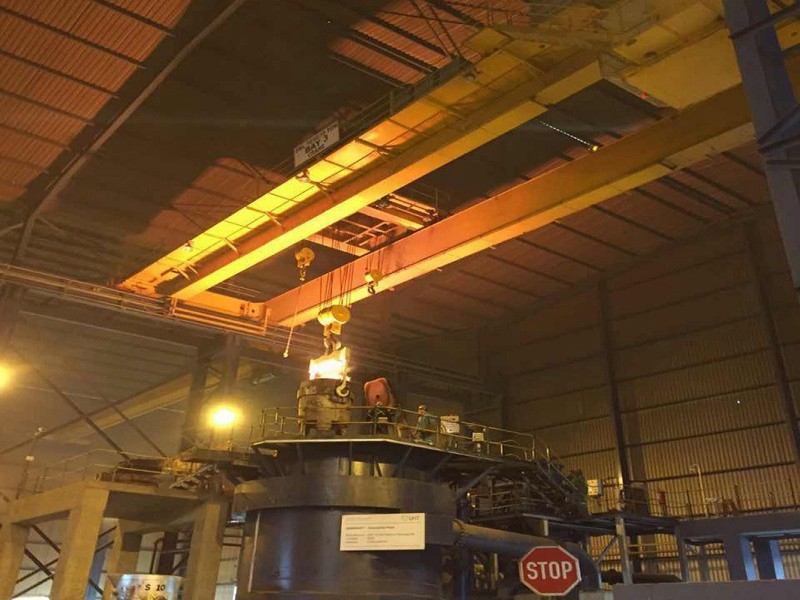

Bridge foundry crane with hook is mainly used at the place where the molten metal is lifted. The working class of the complete machine is A7, and the thermal-protective coating is added at the bottom of the main girder.The assembling and test of the crane conform to the document No. ZJBT[2007]375 WHICH WAS ISSUED BY General Administration of Quality Supervison, Inspection and Quarantine of China.

Environmental conditions:
1, The power of crane is three-phase AC; tated frequency is 50HZ; rated voltage is 380V;
2,the temperature of the working environment is -10~+60 centigrade;
3,The relative humidity is no more than 50%when the temperature is +40 centigrade;

Working condition:
Working tempreture:-10~+60C,
Work class: A7,
Power Source: 3ph, 380V, 50HZ or other under customer requirement.

Safety feature:
Weight overload protection device,
Top quality long time bearing polyurethane materials buffer,
Crane traveling limit switch, Voltage lower protection function,
Emergency stop system,



Features

 Reasonable structure and light dead weight

 2. Favorable performance, accurate and smooth lifting.
 3. Safe and reliable traveling
 4. Low noise and easy operation,
 5. Convenient maintenance, high exchangeability for
     parts and components
 6. Main girder: no-weld U-shape and one stop molding,
     increase the girder strength.


Specification

Model number QDY - Double girder overhead crane
Capacity(main hook) 5~450ton
Capacity(Aux hook) as your requirement
Span  7.5m-35m
Lifting height 6m, 9m, 12m, 18m, 24m, 30m
Lifting unit  Wire rope electric trolley
Industrial voltage 380V,50Hz,3Phase or as your demands
Control methods Pendant push button, remote controller or cabin control
Working temperature ‘-25 C ~ +42 C
Working class A5, A6, A7
Color of crane Red, yellow or as your demands
Raw material of crane structure Q345 steel plate
