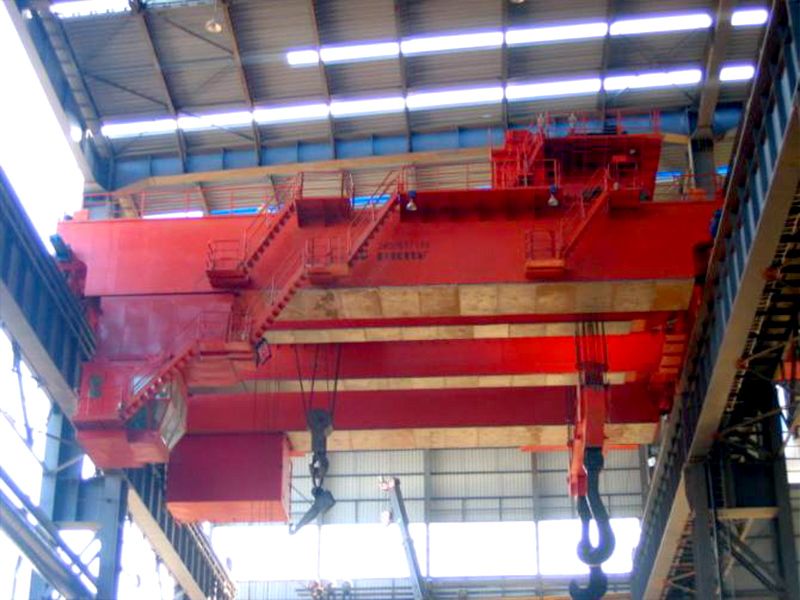

A teeming crane is also called ladle crane, casting crane, foundry crane or metallurgical crane etc.

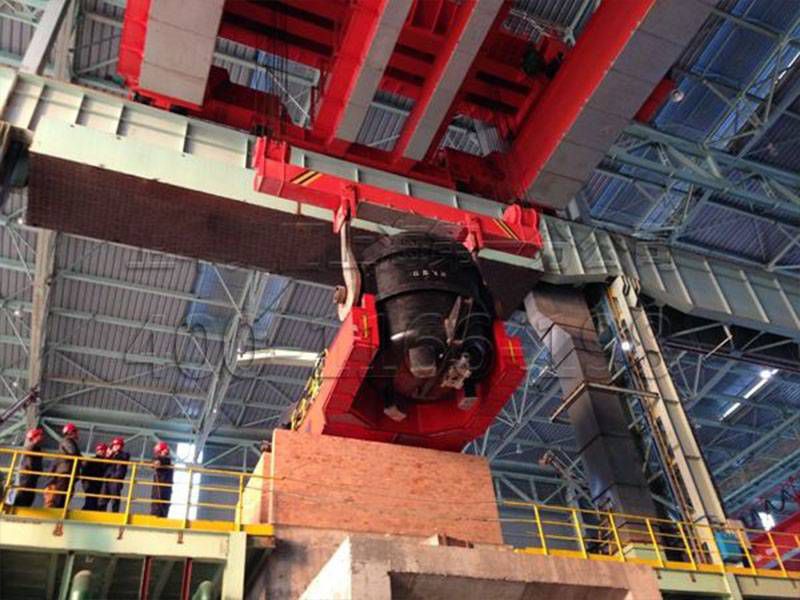

The teeming crane is usually working in casting workshop. Mostly for ladle handling and pouring the hot metal liquid. A teeming crane could charging the hot metal liquid to the converter or EAF, So it have the speed requirement of accurate positioning.
Lifting Capacity: 40-220t
Span: 10.5-31.5m
Lifting height: 6m~30m
Work level: A7-A8
A teeming crane have 5 types in the market. As following is 5 different structure of teeming crane.
1. Four Girder Four Rail Double Trolley Teeming Crane
2. Four Girder Six Rail Double Trolley Teeming Crane
3. Double Girder Double Rail Single Trolley Teeming Crane
4. Double Girder Four Rail Double Trolley Teeming Crane
5. Double Girder Double Rail Mother and Child Trolley Teeming Crane
A teeming crane could charging the hot metal liquid to the converter or EAF, So it have the speed requirement of accurate positioning. Normally it need variable speed. The laminated ladle hook design of a teeming crane should be considering the ladle size .The traverse beam size also should consider the suitable size to match the furnace door.
Our company's teeming crane is customizable to meet user requirements, offering features such as adjustable speed for each mechanism (1:10 or greater), rotating hoist, variable laminated hook distance, overload limits with alarms, load weighing and display, PLC control, fault detection, display, recording, and printing system, as well as collision prevention between cranes of the same span. For more details, please send enquiry to info@sinokocrane.com.

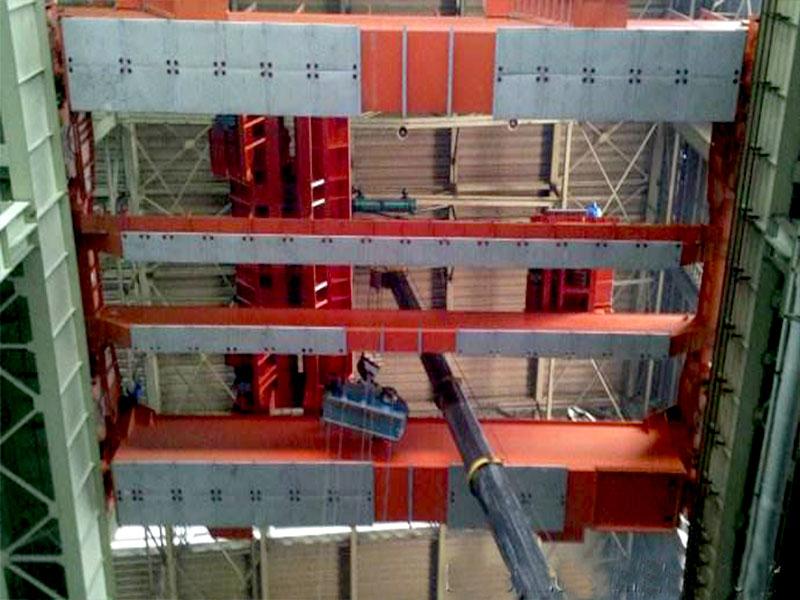

Four Beam and Four Rail type teeming crane is a most general popular design in the crane market, Quite suitable for big capacity teeming crane 100 ton ~320 ton. The main structure of teeming crane is include electrical equipment, main trolley system, traveling system, beam structure, auxiliary trolley system, lifting traverse beam etc.
Four Girder Six Rail teeming crane is normally for extreme huge capacity ,more than 320 ton. The purpose is solving the big wheel pressure ,improve the trolley pressure for the main beam.
Double Girder Double Rail Single Trolley teeming crane is designed for small capacity 120t below ladle cranes. Main hoist and auxiliary hoist are in one trolley system. Hook distance is fixed. It has compact structure.
Double Girder Four Rail teeming crane is also for small capacity 100 ton below. It have independent main hoist trolley and auxiliary hoist trolley. This design could help the auxiliary hook to work more easily to hook the ladle.
Double Girder Double Rail Mother and Child type trolley teeming crane. The child trolley could traveling small distance on the main trolley .So that the hook distance could be adjustable .
If you want more information or need teeming crane, welcome to send enquiry to info@sinokocrane.com, our professional team will supply best solution for your steel mill.
