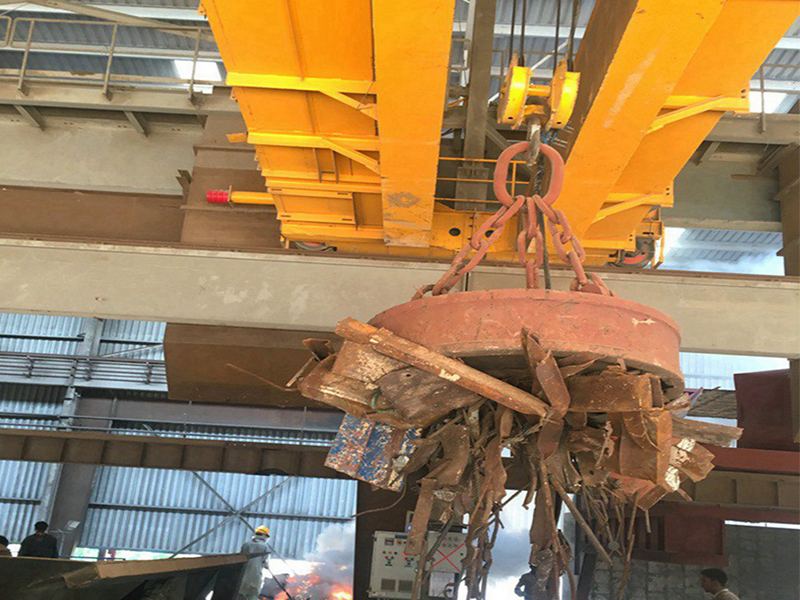

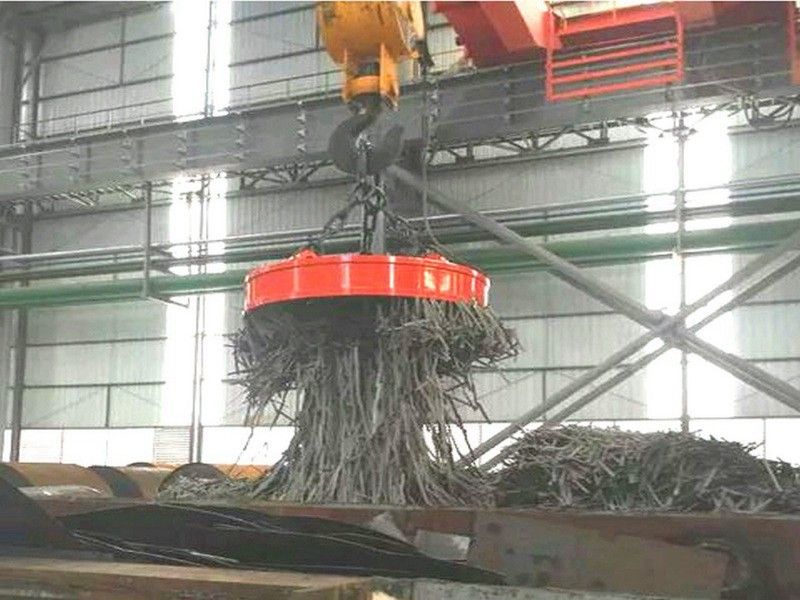

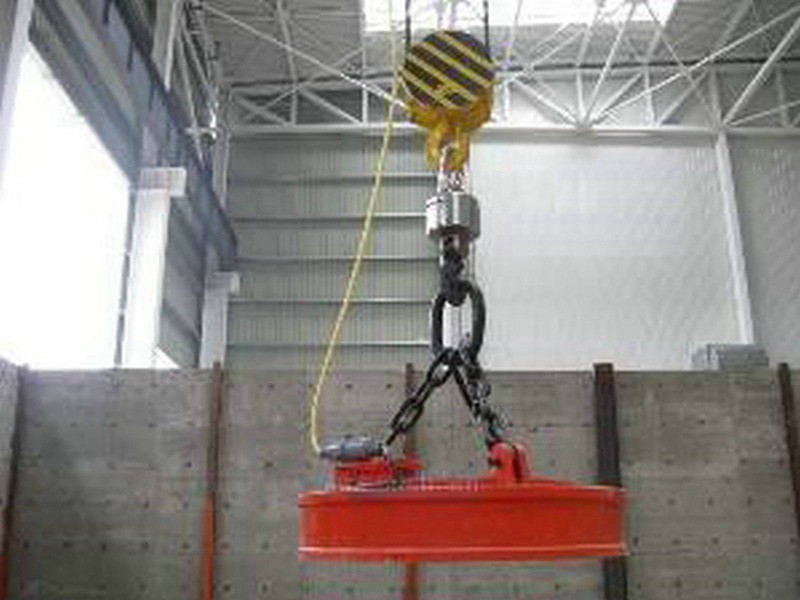

Steel Scrap Handling Electromagnet Overhead Crane is widely used in steel rolling mill, steel making industry.High efficieny lifting equipment for steel scraps.
1.Special magnetic circuit design .It has large space and magnetism density.
2.Good insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils
3.The constant control voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4.High temperature type can work in the high temperature. It adopts unique method of heat protection.
5.Simple and convenient installation, operation and maintenance
6.Long working life ,simple structure.
7.High Efficiency.
8. Back battery to avoid risk when the power is suddenly off.
Sinokocrane is focusing on Steel scrap magnet crane, magnet charging crane, scrapyard magnet crane for many years. We have been doing professional design of magnet crane due to the harsh work condition, High temperature Environments, High Dust, Heavy work requirements etc.
Normally the steel scrap magnet overhead crane working duty is A5~A7. Due to different working efficiency requirements, we will make different proposal for customer.
1.Special magnetic circuit design .It has large space and magnetism density.
2.Good insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils
3.The constant control voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4.High temperature type can work in the high temperature. It adopts unique method of heat protection.
5.Simple and convenient installation, operation and maintenance
6.Long working life ,simple structure.
7.High Efficiency.
8. Back battery to avoid risk when the power is suddenly off.
Model | Current in cold state ( A) | Power in cold state (KW) | Lifting capacity (kg) | Weight (kg) | Overall dimension (mm) | Control Equipment | Cable reel & Cable Connector | ||||||
Single steel ball | Packed steel ingots | Packed steel scraps | A | B | C | D | E | ||||||
MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 | STML-4E-C | JTA75-15-2 DL-102 |
MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/130 | 620 | 800 | 800 | 160 | 90 | 30 | STML-4E-C | |
MW5-90L/1 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 | STQL-7E-C | |
MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 | STQL-9E-C | JTA100-15-2 DL-102 |
MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1180 | 220 | 150 | 45 | STQL-14E-C | |
MW5-130L/1 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 | 2060 | 1300 | 1240 | 250 | 175 | 50 | STQL-14E-C | |
MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 | STQL-19E-C | |
MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 | STQL-19E-C | |
MW5-180L/1 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 | STQL-25E-C | JTA200-15-2 DL-202 |
MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 | STQL-32E-C | |
MW5-240L/1 | 154 | 33.9 | 26000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 | 90 | STQL-38E-C | |
