Lifting Capacity: 1~20t
Span: 3m~32m

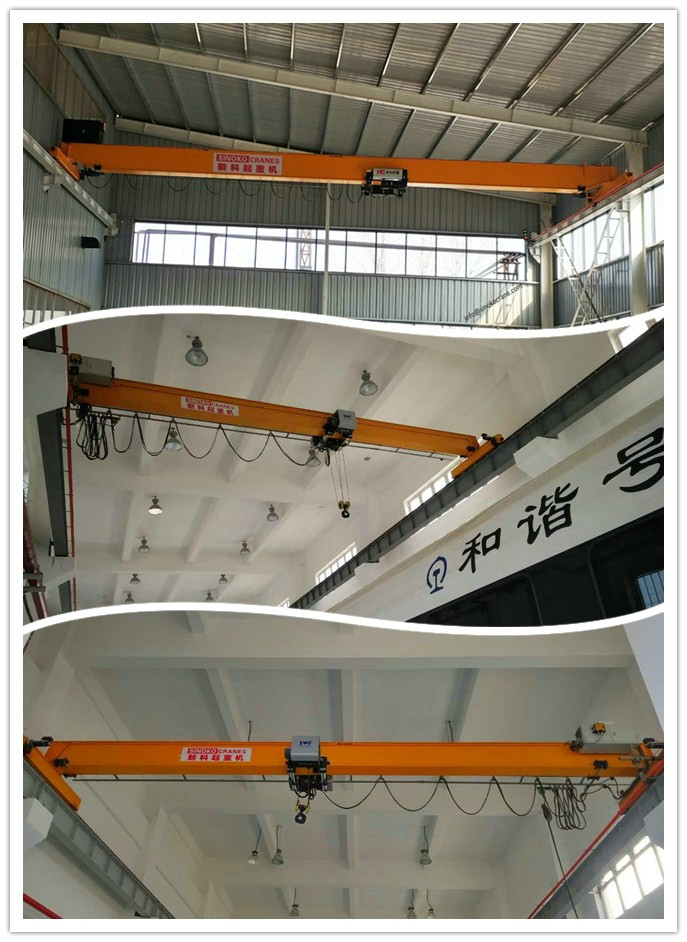

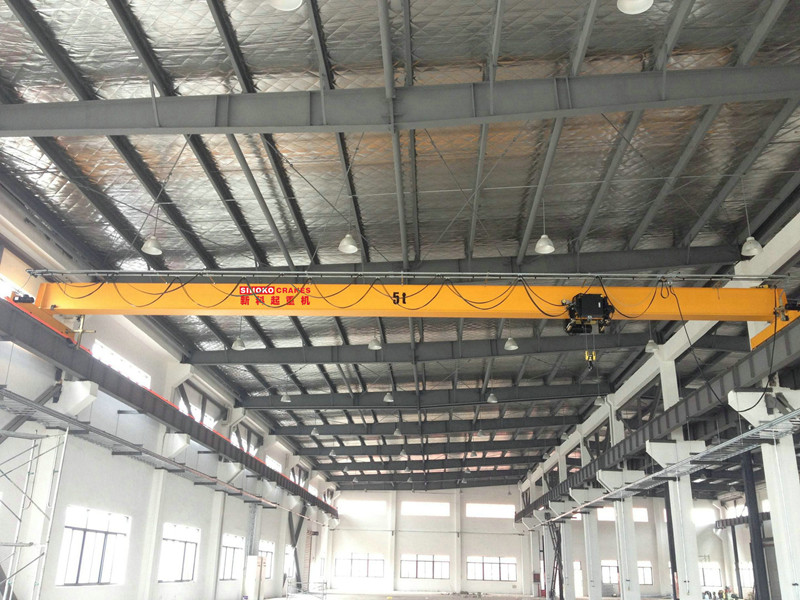

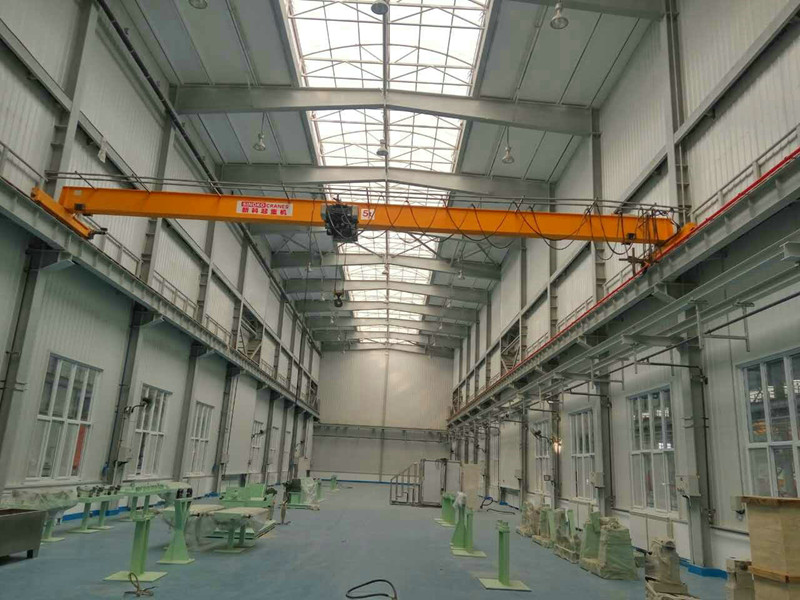

European design remote control roof celling overhead crane is a single girder crane, it is often the most cost-effective lifting solution for various applications and industries. Single girder cranes use less material and are more compact and lightweight than a double girder crane, which results in a significant cost-savings in material, freight, and installation. Also, because they only require one bridge beam, these systems typically have less deadweight, meaning they can utilize lighter runway systems and tie into the existing building support structure.
European single-girder overhead cranes have light dead weight, compact structure and low energy consumption. European cranes use a unique design concept, featuring small dimensions, light weight and low wheel pressure. Compared with traditional cranes, the minimum distance from the hook to the wall is the smallest, and the height of the headroom is the lowest.
The SINOKO celling overhead crane is able to get close to the wall and has a higher height, which actually increases the effective working space of thefactory.Because its lighter weight and lower wheel pressure, the new factory can be designed with smaller space and more functions. Smaller workshops mean that people can save a considerable amount of money in initial construction investment, long-term heating, air conditioning and other maintenance costs.
1. Unique structure, higher lifting space
2. European design, light dead weight
3. PLC + human-computer Interaction, comprehensive protection.
4. Protection class IP55, F class insulation
5. Flat cable + traveling C channel, smoothly traveling.;
SINOKO CRANE European type single girder overhead crane is designed according to FEM standard with double lifting speed and stepless cross traveling speed and long traveling speed. The crane advantage are as below:
i. Lightweight design
The European type single girder overhead crane is more advanced on structure design. The crane self height is 20%-25% lower than normal overhead crane, the self weight can be 20%-30% lighter, the wheel press can be 15%-20% smaller, the hook limit will be smaller so the working space will bigger. Moreover, the light crane structure can reduce the workshop cost.
ii. Low-energy & free-maintenance
With German motor, the total power can be 20% lower than normal crane, which can save energy.
Composite transmission mechanism has less mid device, the efficiency can be higher.
Frequency control speed, the can be low-high speed 1:10, which will improve the working efficiency with more than 20%.
iii. Free maintenance and easy maintenance design will reduce the maintenance cost for you.
Components which are imported from abroad, the break down rate is very low and will reduce your cost when using the crane.
iv. Intelligentized
Safety monitor, which called the crane black box, it will record every operation.
Electrical anti-swaying system, which can help the crane working with precise position control.
| Capacity | 0.5~20t |
| Span | 3~32m |
| Lifting Height | 3~35m or customized |
| Lifting speed | Single speed: 3.5~8 m/min or customized Double speed: 3.5~8/0.35~0.8 m/min or customized |
| Lifting mechanism | Wire rope hoist or electric chain hoist |
| Work duty | M3~M5 |
| Power supply | 220/230/380/400/415/440V/460-AC-3Phase-50/60Hz or as require |
| Control method | Push button, wireless remote control, cabin control |
| Application area | Factory, workshop, warehouse, power station, logistic, steel mill etc. |
| Color | Red, yellow or customized |
| Working temperature | -20~40° or as require |
| Protection class | IP44; IP54; IP55; IP65 |
| Safety device | Buffer, current overload protection, overload device, power failure protection, lifting height limit device, gravity limit device |
