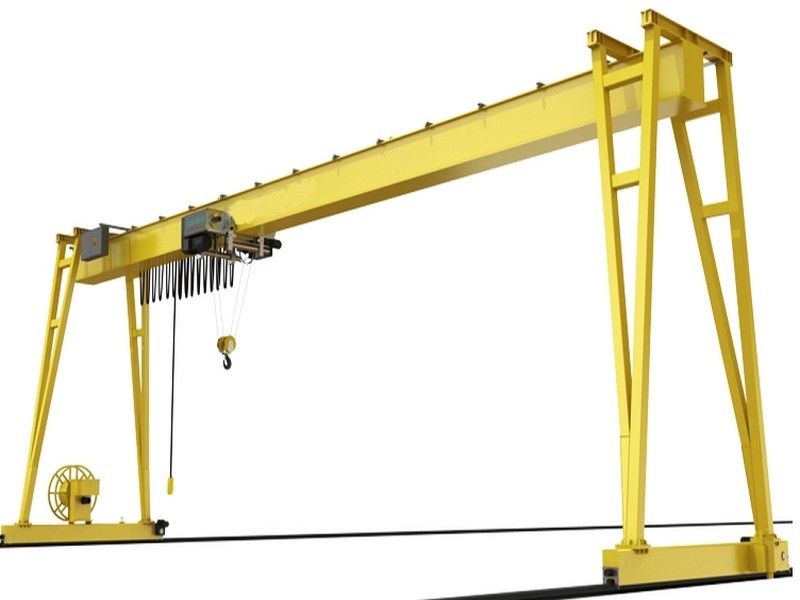

FEM Standard Single Beam Gantry Crane is widely used together with electric hoist or winch or trolley for lifting device.
Single beam gantry cranes are commonly used in industrial settings, such as factories, warehouses, and construction sites. They are designed to lift and move heavy loads, and they are often used to load and unload cargo from ships or trucks. They can also be used to move heavy equipment or materials around a work site.
(1) Compact design
(2) Fast and smooth loading
(3) Better performance
Crane material: Q235, Q345B/Q345D |
Strong box type, no-welding joint strong box type, by machine hand, strong and beautiful. |
| Wheels are vacuum casting by ourselves, intermediate frequency quenching. |
| Wheels, wire rope, drum, gears, coupling are manufactured by our CNC machines. |
Electrical equipment: Siemens or Schneider brand. |
Control method: Cabin control, wireless remote control or pendant control, you can choose two of them. |
There are several types of single girder gantry cranes:
1. Portable gantry crane: This type of crane is designed to be easily moved from one location to another and is typically used for light-duty lifting applications.
2. Adjustable height gantry crane: This type of crane features an adjustable height design, allowing it to be used in a variety of different settings.
3. Fixed height gantry crane: This type of crane is designed to be permanently installed in a specific location and is typically used for heavier lifting applications.
4. Semi-gantry crane: This type of crane features one end supported by a building or structure, while the other end is supported by a gantry leg.
5. Cantilever gantry crane: This type of crane features a single girder that extends beyond the gantry legs, allowing it to reach over obstacles or into tight spaces.
6. Truss gantry crane: This type of crane features a truss structure that provides additional support and stability for heavier lifting applications.
1. Overload protection device
2. Top quality long time bearing polyurethane materials buffer
3. Crane traveling limit switch
4. Voltage lower protection function
5. Emergency stop system
6. Lifting height limit device
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button/Cabin/Remote | |||||||
| Speed | Lifting | m/min | 8,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30, 45 | 20,30,40 | 30,40 | 30,40 | 30,40 | |||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9,12,18,24,30 | ||||||
| Working duty | A5 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand) | |||||||
1. One year warranty for whole machines from crane running
2. Providing free spare parts
3. Low charge for continue maintenance when warranty is expired
4. Exclusive engineer support at any time
5. We can provide free training to end-users
