Scrap Yard Grab Gantry Cranes

Scrap Yard Grab Gantry Cranes

Advantages

1. Adopting European electrical components, like ABB/Siemens/Schneider brands, quality is reliable and easy replacement.

2. Few trouble shooting and highly efficiency.

3. Convenient installation and maintenance.

4. Long service life span and optimized investment.


Overview:

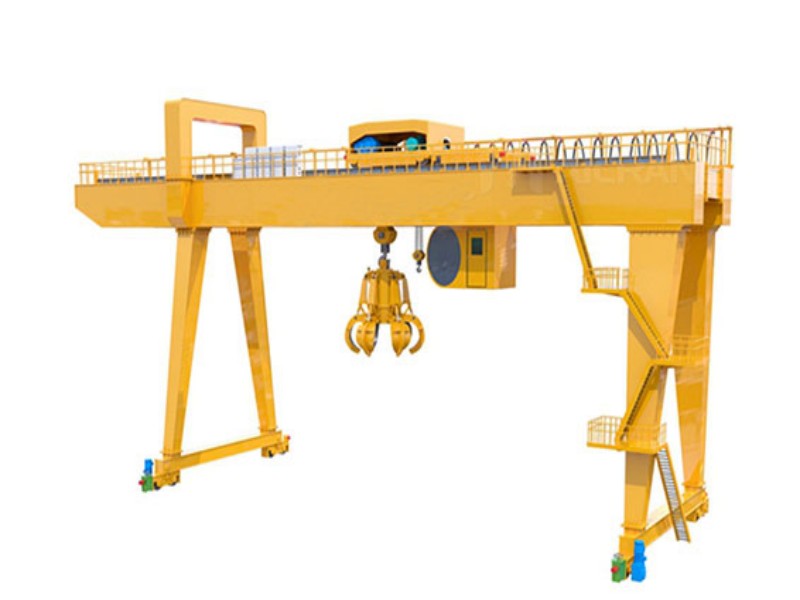

Scrap Yard Grab Gantry Cranes

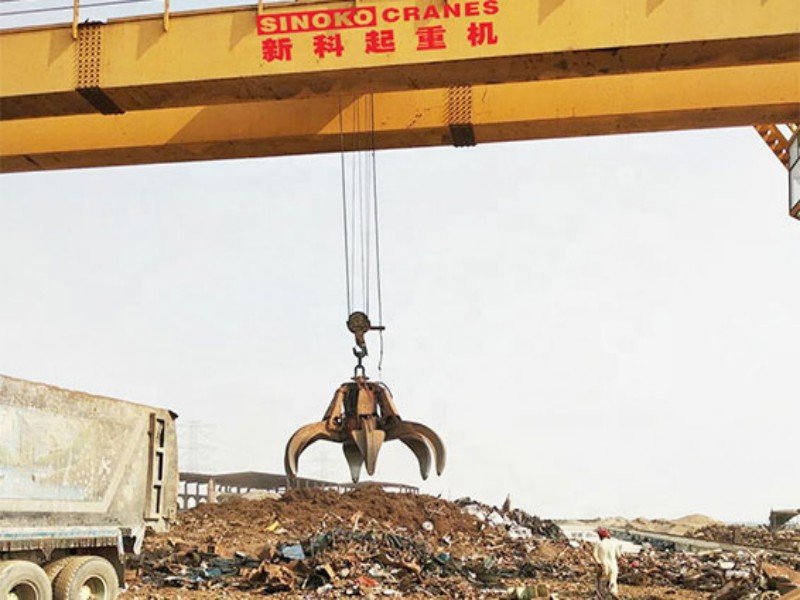

Scrap yard grab gantry cranes are equipped with a hydraulic grab or magnets to loading the scraps into scrap bucket transferring trolley. Then low-voltage transfer trolley will shift the scraps bucket into the melting shop. Finally the melting shop crane is required to pick up a scrap bucket collected with the double laminated hook and charge the scrap into the Electric Arc Furnace directly.


The scrap yard grab gantry cranes shall be heavy duty design and cabin operated though master controllers. The working duty of this crane is Min.A5. Generally, the crane is designed to be A6 or A7 duty group.


Features

Scrap Yard Grab Gantry Cranes

* Heavy duty design and high efficiency

* Large span with single or double external cantilever beams

* Open winch trolley with rain-proof cover

* Slip ring motor, high starting torque with low starting current

* Double EHT brakes for each hoisting mechanism

Specification

Lifting Capacity
t
5
10
16
20
32
Span
m
10-40
Hoisting Speed
m/min
12.9
10.6
10.7
9.7
9.7
Cross Travel Speed

38
36.5
36.5
36.5
36.5
Long Travel Speed

72
72
72
72
72
Control Model
Cabin operated though master controllers
Working Class
ISO A5-A7
Steel Track
P38
P43
P43
QU70
QU70/80

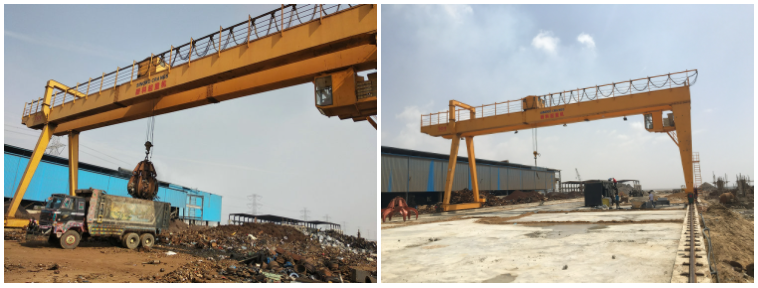

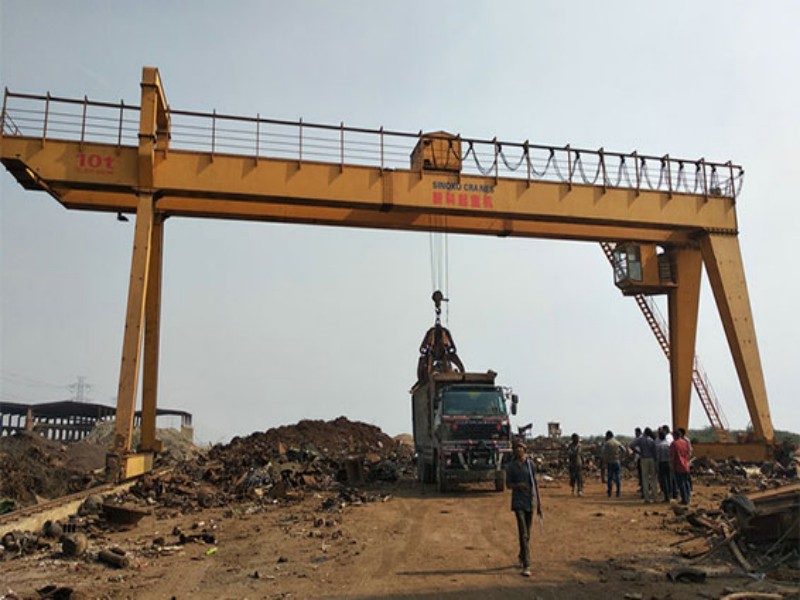

Applications of Scrap Yard Grab Gantry Cranes

Scrap Yard Grab Gantry Cranes
