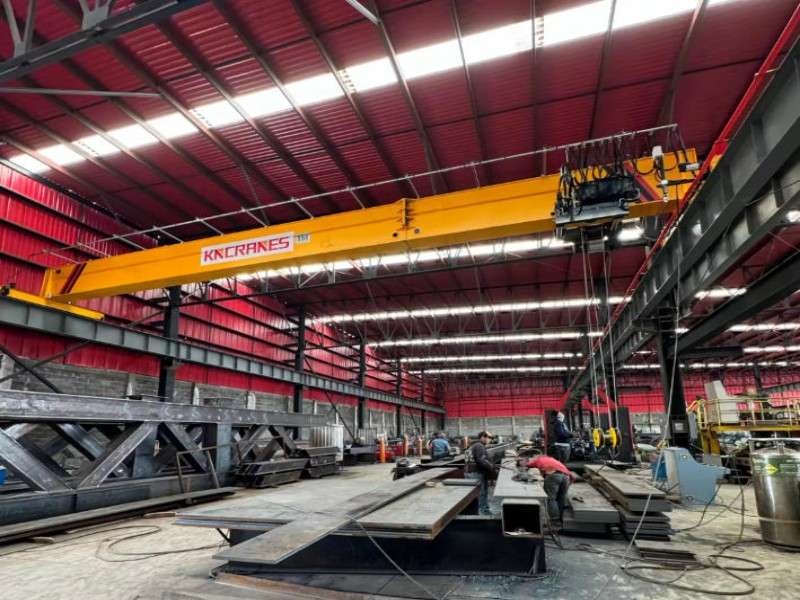

Top running single girder crane is a type of overhead crane that features a single girder supporting the hoist and trolley system. The crane runs along the top of the runway beams, offering efficient lifting and transport of materials within a facility.
Sinokocranes is designed according to DIN/FEM standard with double lifting speed and stepless cross traveling speed and long traveling speed.
With the continuous improvement of the speed regulation performance of cranes for industrial production, the traditional cranes that are commonly used cannot meet the special requirements of industrial production. Now with the continuous development of power electronics technology, the inverters in the lifting machinery industry have increasingly exhibited excellent control and speed control performance, high efficiency, and easy maintenance. stepless speed top running single girder crane produced by SINOKO Crane, have been applied to various industries, and its excellent performance has been praised and recognized by many customers.
Low dead weight:
The design of a low headroom monorail hoist reduces the weight of the crane system, resulting in less stress on the building structure. This is particularly advantageous in situations where weight restrictions or limitations exist.
Increased headroom:
The compact design of a low headroom monorail hoist allows for more headroom, providing additional space for lifting operations. This is especially beneficial in buildings with limited vertical clearance.
Cost-effective solution:
Compared to double girder models, low headroom monorail hoists have lower production costs. As a result, they are generally more affordable, making them an economical choice for many applications.
Versatility:
Low headroom monorail hoists can be customized to meet specific lifting requirements, including lifting capacity, speed, and control options. They can be tailored to suit various industries and applications.
 | Drive mechanism is sealed three-in-one type, self-lubricating, maintenance free, inverter control, stable running, reiable quality, low noise. |

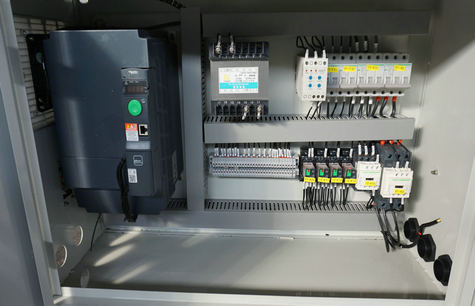

Surface of electric cabinet is dealt with through antisepsis plastic spraying, reasonable layout, easy maintenance, with protection level IP55, the temperature of working temperature should be lower than 45℃ and the humidity should be less than 90%. |  |
 | The all motions of this material handling crane are double speeds, the lifting motor is double speed type, the cross traveling motor and long traveling motor are controlled by frequency inverter, which can enable the crane to run with heavy load at low speed and light load at high speed, saving energy and reduce consumption |
| Capacity(t) | Span(m) | Lifting Height(m) | Working Class | Lifting Speed (m/min) | Cross Traveling Speed(m/min) |
| 1 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 2 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 3.2 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 5 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 10 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 12.5 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
At Kino Cranes, we offer our customers three unique single girder crane designs to meet their specific needs.
Low Headroom Monorail Hoist Crane: The single girder crane is equipped with an electric wire rope hoist for lifting and lowering operations.
CD/MD Wire Rope Hoist Crane: The single girder crane is equipped with an electric wire rope hoist for lifting and lowering operations.
Chain Hoist Crane: The single girder crane utilizes a chain hoist mechanism for lifting and lowering tasks.
Ready to find the perfect single girder crane for your lifting needs? Contact us today to explore our wide range of high-quality and customizable options. Our team of experts at KINOCRANES is ready to assist you in selecting the ideal single girder crane based on your specific requirements, whether it's for light, medium, or heavy-duty applications. Don't miss out on the opportunity to enhance your lifting operations with our reliable and cost-effective solutions. Get in touch with us now to request a quote and take the first step towards optimizing your material handling processes.
