We design, manufacture and sell multiple types of overhead cranes used in a number of applications to meet customers' different requirements.
- ABM motor driven
- good performance

Share With:

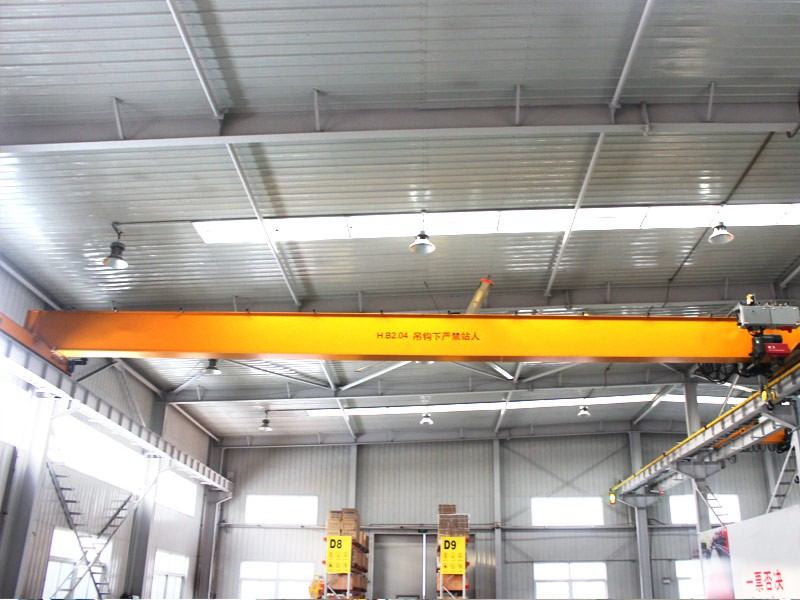

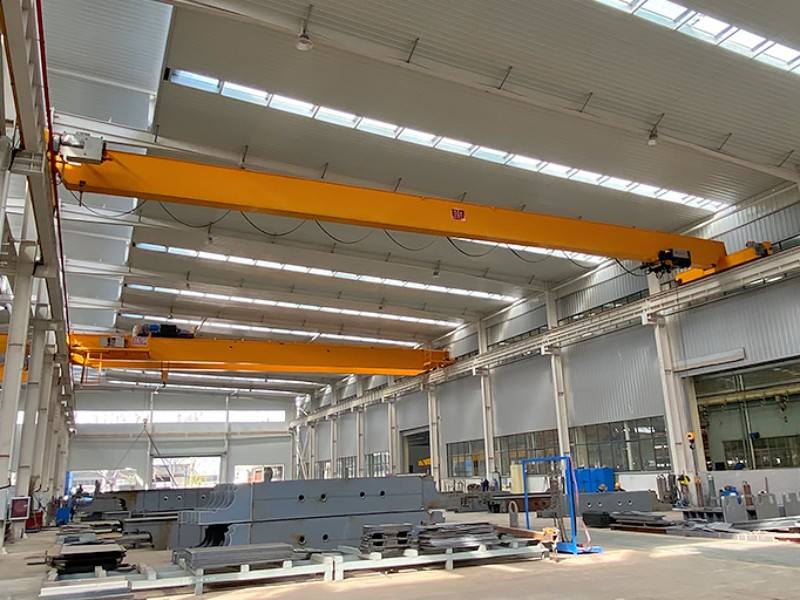

SG Single Girder Crane

Premium quality aluminum extrusions are used in the process of design with enclosed tracks, and many custom options such as

corrosion resistant chain or remote control capacities can be added into the design as requested.

SG Single Girder Crane

Features

Regardless of style, however, there are three universal parts for all overhead cranes:

Bridge: The bridge is made up of stationary or mobile rails that form a parallel runway to carry one or more trolleys across it.

Trolley: Running side to side across the bridge, this unit carries the hoist.

Hoist: The hoist is the mechanical device of catching load to raise it. Hoist can also be used independently for vertical lifting applications.

 SG Single Girder Crane

Specification

Capacity(t)Span(m)Lifting height (m)

Lifting speed

(m/min)

Max. wheel load (kn)Total power

(KW)

Total weight

(T)

5t10.5-31.595/0.8336.8-74.25.5-7.23.9-19.6
10t10.5-31.595/0.8364-108.610.5-12.25.8-20.8
16t10.5-31.5105/0.83100-12818.1-19.56.8-25.8
20t10.5-31.5105/0.83112-86.621.1-24.97.4-28.3
25t10.5-31.5105/0.83150-102.221.5-25.39.3-30.2
32t10.5-31.594/0.67191-128.829-30.410.2-32.8
40t10.5-31.593.2/0.5232-14629-32.811-35.1
50t10.5-31.592.5/0.4142-180.531.2-33.612.9-42.6
63t10.5-31.592.5/0.4179-220.542-43.214.3-46.9
80t10.5-31.592/0.3225-26742-43.217-50.3



Get a Free Quote

CASE

Explore real-world project cases showcasing how our overhead cranes are customized and deployed across various industries. From complex factory layouts to space-restricted workshops, discover how Sinoko Crane delivers efficient and reliable lifting solutions around the globe.

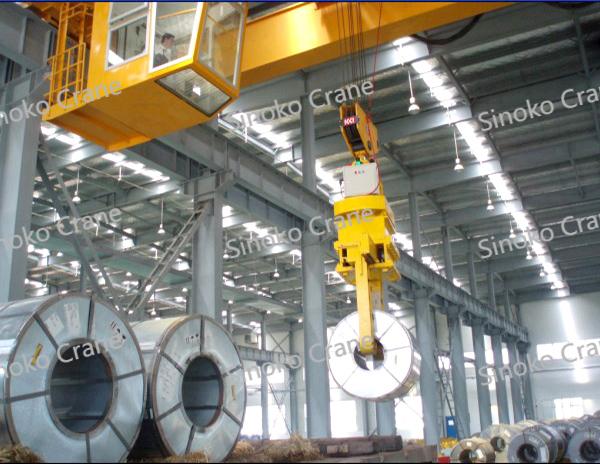

32T Steel Coil Handling Crane Project Case

32T Steel Coil Handling Crane Project Case

Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.

Learn More Get a Quote

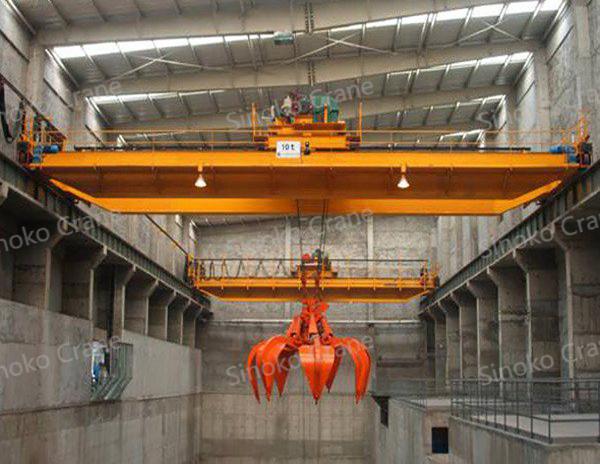

Installation of QZ-Type Grab Bucket Bridge Crane Project Case

Installation of QZ-Type Grab Bucket Bridge Crane Project Case

The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.

Learn More Get a Quote
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case

Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case

The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.

Learn More Get a Quote

FAQs

1. What are the key advantages of choosing an ABM motor‑driven single girder overhead crane?

The ABM motor‑driven single girder crane features an optimized box‑girder design with DIN/FEM/ISO compliance, delivering strong rigidity, lightweight structure, and compact size—ideal for workshops requiring low headroom and efficient space usage.

2. What motor and electrical components power the crane and how do they enhance performance?

This crane employs a premium ABM lifting motor, variable‑speed SEW or ABM travel motor, and reputable electrical systems from Siemens, Schneider, or ABB. With protection classes of IP54–IP55 and F‑class insulation, you can count on durability and precision.

3. Which control options are supported for operating this crane for maximum flexibility?

Operators enjoy versatile control modes, including a stepless pendant panel offering thousands of speed settings and wireless remote control for safer, more efficient ground-level operation.

4. What safety and overload protections are built into the crane design?

The crane comes equipped with key safety features such as overload limiters, emergency stops, robust IP‑rated general protection, and precision lifting mechanisms—all designed to enhance operational safety.

5. What kind of applications and environments are suitable for this crane model?

Tailored for light to medium industrial applications, this crane excels in workshops, warehouses, petrochemical, metal, and general manufacturing environments—particularly where low ceiling heights and compact footprint are needed.

6. What performance benefits can users expect from the ABM motor‑driven design?

By integrating imported ABM/SEW motors and advanced variable‑frequency drives, this crane achieves efficient energy consumption (up to 30% savings), maintenance‑free operation, and enhanced precision—all while reducing total facility investment.
