The circular lifting crane magnets (lifting electromagnet) are basically electromagnets used alongside cranes so as to complete the lifting action needed in factories, dumping grounds etc.
Rated voltage: DC-220V
Duty Cycle: TD-75%
Model: MW5
Cold State Power: 2.0-32.5 KW
Magnet Iron Core: Q235A material
Max. temperature can reach to 700-800℃

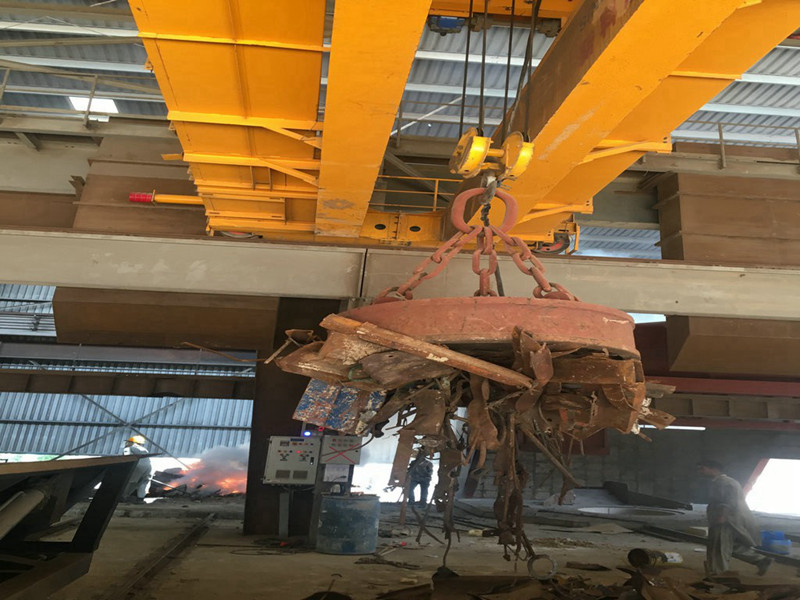

Crane magnets are important components for hoisting steel plates, scrap steel, steel pipes, etc. It is used for loading, unloading and carrying steel plate, profile steel, and spool, etc. It is especially applicable to lift material or different specifications and which needs Horizontal rotation. The carrier-beam is cross structure, which is reliable and has good safety features, and has a certain function of preventing swinging. The lower part of the carrier-beam can bring special lifting appliances, such as magnetic chuck and tongs, etc. Can improve work efficiency. Lifting Magnet Supplier - Sinoko Crane can provide lifting magnets according to your lifting materials and your requirements.
1. Steel Material: Q235 or Q345
2. Whole layout provides good protection against special working environment.
3. Double box beam with steel legs moving through the ground beam as crane travelling system.
1. Using a fully sealed structure, good moisture resistance.
2. Optimized by computer design, reasonable structure, light weight, large suction, low energy consumption.
3. Excitation coils are treated by a special process to improve the electrical and mechanical properties of the coils.
4. Insulation materials have a thermal rating of Class C and a long service life.
5. The rated electrification continuation rate of ordinary crane magnets has been increased from the previous 50% to 60%, which has improved the use efficiency of electromagnets.
6. The ultra-high temperature type electromagnet adopts a unique heat insulation method, in which the temperature of the sucked object has increased by 700°C in the past 600°C, thereby expanding the application range of the electromagnet.
7. Easy installation, operation and maintenance.
| Model | Lifting capacity (kg) | ||
| (cold/hot state) | |||
| Steel ball | Steel ingot | turnings | |
| MW5-50L/1 | 1200 | 220/130 | 80/65 |
| MW5-60L/1 | 2000 | 290/170 | 95/80 |
| MW5-70L/1 | 2500 | 380/200 | 120/100 |
| MW5-80L/1 | 3000 | 480/250 | 150/130 |
| MW5-90L/1 | 4500 | 600/400 | 250/200 |
| MW5-110L/1 | 6500 | 1000/800 | 450/400 |
| MW5-120L/1 | 7500 | 1300/1000 | 650/500 |
| MW5-130L/1 | 8500 | 1400/1100 | 700/600 |
| MW5-150L/1 | 11000 | 1900/1500 | 1100/900 |
| MW5-165L/1 | 12500 | 2300/1800 | 1300/1100 |
| MW5-180L/1 | 14500 | 2750/1100 | 1600/1350 |
| MW5-210L/1 | 21000 | 3500/2800 | 2200/1850 |
| MW5-240L/1 | 26000 | 4800/3800 | 2850/2250 |
| MW5-260L/1 | 30000 | 6100/4900 | 3600/3850 |
| MW5-280L/1 | 34000 | 7100/5700 | 4450/3400 |
| MW5-300L/1 | 39000 | 8350/6700 | 5150/4100 |
