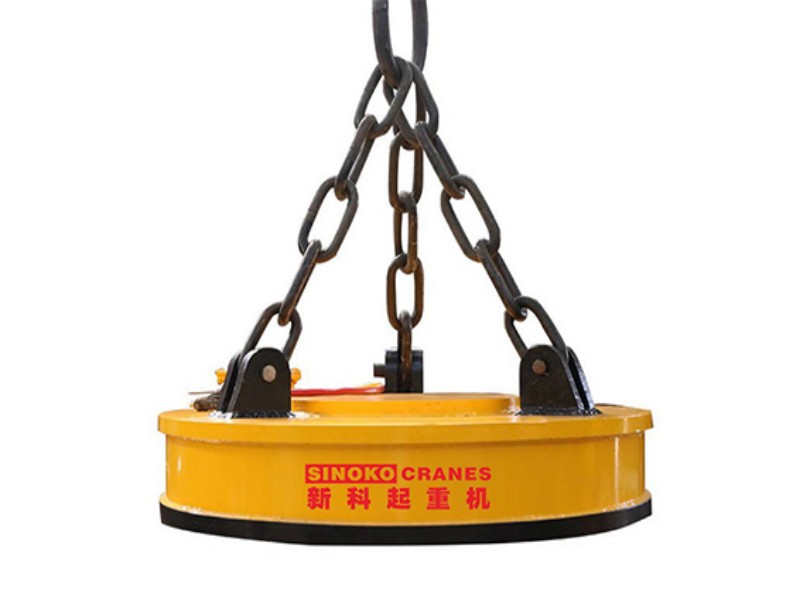

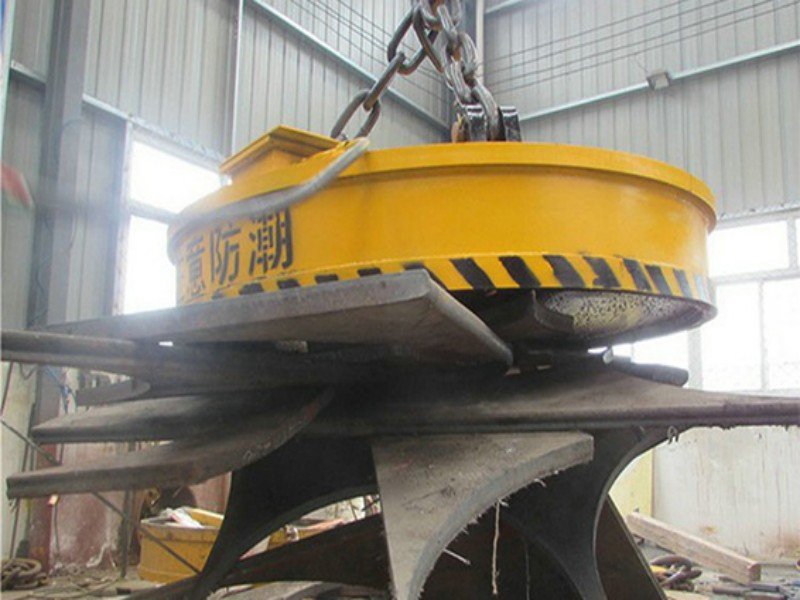

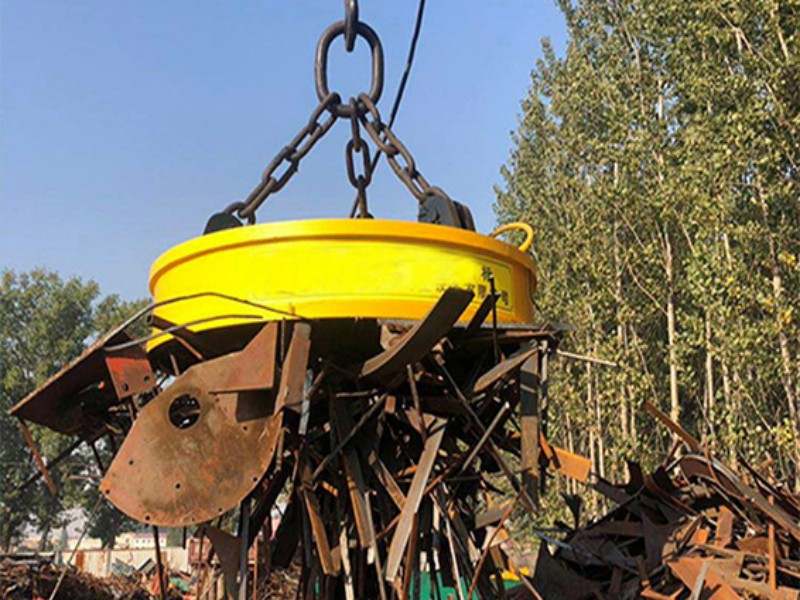

Scrap yard crane electromagnet, also known as crane lifting magnet for scrap yard, is mainly used for lifting magnetic materials such as steel in metallurgy, mining, machinery, transportation and other industries. It can also be used as an electromagnetic manipulator to hold magnetic materials, and is suitable for processing cast iron ingots, steel balls and various scrap steels.
1) Attractive, small size, light weight, lifting capacity, easy and safe operation.
2) Running in a high automatization and intellectualization.
3) Adopt totally sealing structure with good property of moisture-proofing.
4) Simple and convenient installation, operation and maintenance.
5) Majorized design by computer with reasonable structure, light dead-weight, strong attraction force .
Crane electromagnet are matched with various cranes to provide ideal material handling solutions for steel, shipbuilding, heavy machinery, steel warehouses, ports, railways, etc. At the same time, we can provide different shapes of crane electromagnet to meet the handling of different materials, such as round shaped, oval and square crane electromagnet.
1. Fully sealed structure, no maintenance on the surface, stable operation, no seals, not easy to leak
2. Large bearing capacity, simple and compact structure, reasonable design, stable and not easy to swing, good adaptability
3. Small size, uniform suction force of the disc, can be remotely operated, and scrap yard crane electromagnet is not easy to deform
4. The scrap yard crane electromagnet specifications and models are complete, and can be processed and customized according to actual operation requirements
Sinokocranes can provide you with customized services to meet the various needs of various applications. As a professional material handling solutions provider, Sinokocranes promises to provide the best material handling equipment for your application at the most cost-effective price.
1. Fully sealing structure with good property of moisture-proofing
2. Tailored design with reasonable structure, light dead-weight, strong attraction force and low energy consumption

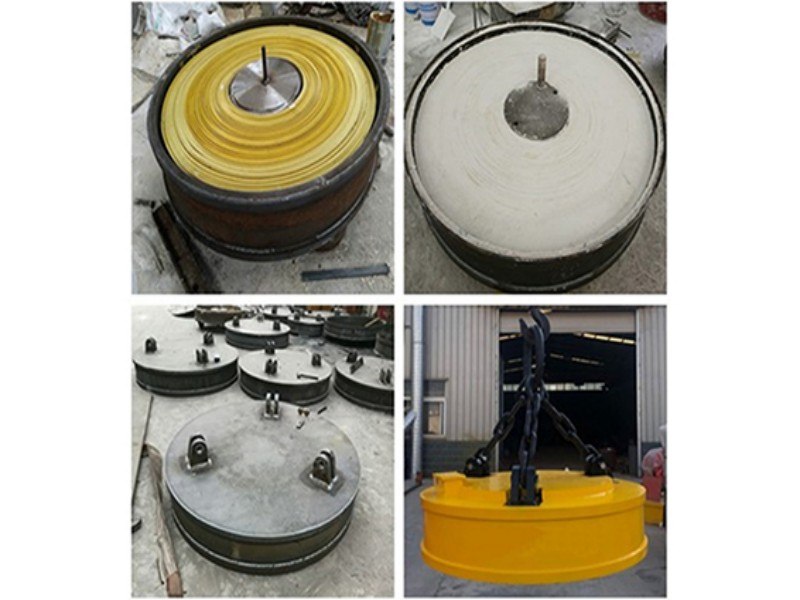

3. The energizing coils are processed by special technology to improve the electrical & mechanical function.
4. Heat-resistant grade of insulating material reaches grade C with long service life
5. High rated power-on sustaining rate of 80% improves the magnet efficiency
6. High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electro magnet
| Model | Diameter(mm) | Current (A) | Power (kW) |
| MW5-70L/1 | 700 | 15 | 3.3 |
| MW5-80L/1 | 800 | 18 | 3.96 |
| MW5-90L/1 | 900 | 26.6 | 5.85 |
| MW5-110L/1 | 1100 | 35 | 7.7 |
| MW5-120L/1 | 1200 | 45.5 | 10 |
| MW5-130L/1 | 1300 | 54 | 11.9 |
| MW5-150L/1 | 1500 | 71.2 | 15.6 |
| MW5-165L/1 | 1650 | 75 | 16.5 |
| MW5-180L/1 | 1800 | 102.4 | 22.5 |
| MW5-210L/1 | 2100 | 129 | 28.4 |
| MW5-240L/1 | 2400 | 154 | 33.9 |
