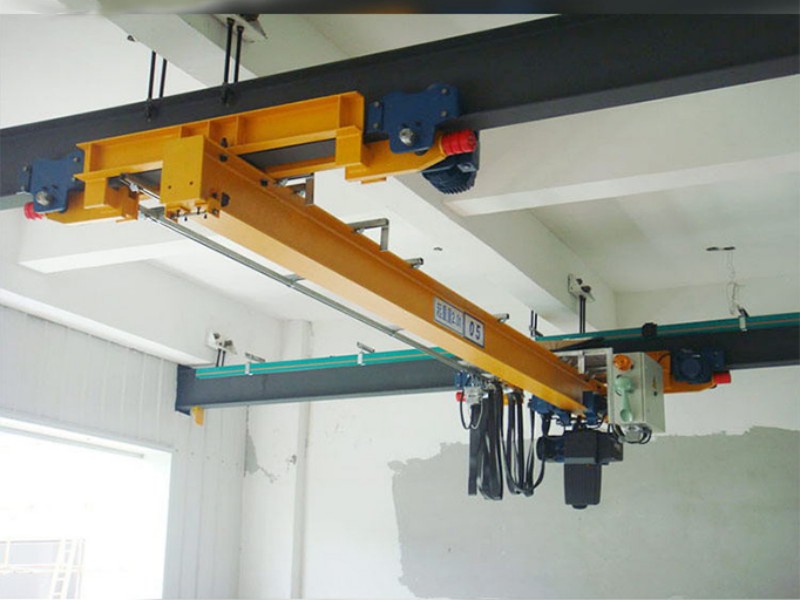

An under running bridge crane, also known as an under hung crane, is a type of overhead crane where the end trucks run on the bottom flange of the runway beam. This means that the runway beam typically hangs from the roof structure, rather than being supported by floor columns. This design allows for maximum utilization of the work area, as the crane can move all the way to the end of the runway beam and the hoist can travel the entire length of the bridge.
Sinoko European standard under running bridge crane has reasonable and optimized structure, maximum meet the needs in strength, stiffness and stability.
Under running overhead cranes are ideal for settings with limited overhead space. They operate under a runway structure, maximizing the distance from the ground to the hook. These cranes are usually supported by the building structure, making the most of the available height.
These cranes come in single, double, and box girder designs. Double and box girders offer better hook height than single girders because the hoist is mounted on top of the bridge.
SINOKO under running bridge crane has reasonable and optimized structure, maximum meet the needs in strength, stiffness and stability. To fully satisfying different customer requirements, the company takes full advantages of combining crane design with site condition, flexible box section designing structure and maintenace friendly feature, possibly make every step easy and individual.
1. Less expensive due to a simpler trolley design, reduced freight costs, simplified and faster installation, and less material for the bridge and runway beam
2. Lower loads on the building structure or foundations due to a reduced deadweight. In many cases, it can be supported by existing roof structure without the use of additional support columns.
3. Better hook approach for both trolley travel and bridge travel
4. Easier to install, service, and maintain
5. Ideal for workshops, warehouses, material yards, and manufacturing and production facilities
6. Better end approach.
7. Reduced structural requirements for the building.
European Type | |
Condition | New |
Type | Single Girder Crane |
Span | up to 35 m |
Lifting Speed | 5/0.38 m/min |
Cross Speed | 0~30 M/Min (VVVF) |
Working Class | A5 |
Origin | Henan, China |
Load Capacity | 0.5t to 10t |
Way to Control | Pendant Push Button / Wireless Remote Controller |
Trademark | SINOKO CRANES |
Specification | CE, ISO |
HS Code | 8426112000 |
Motor | ABB Brand |
Reducer | SEW Brand |
Under running overhead cranes are versatile, efficient, and adaptable to various work environments and lifting needs.
Improve your operational efficiency today! Choose our Under Running Overhead Cranes, designed for optimal performance in spaces with limited overhead room. Contact us to explore our range of single, double, and box girder designs
