Loading Capacity: 0.5~20t
Span:3~32m
Lifting mechanism:Wire rope hoist or electric chain hoist
Work duty:A3~A5
Protection class:IP54; IP55; IP65
Working temperature:-20~40° or as require
Application area: Factory,workshop,warehouse,power station,logistic,steel mill etc.

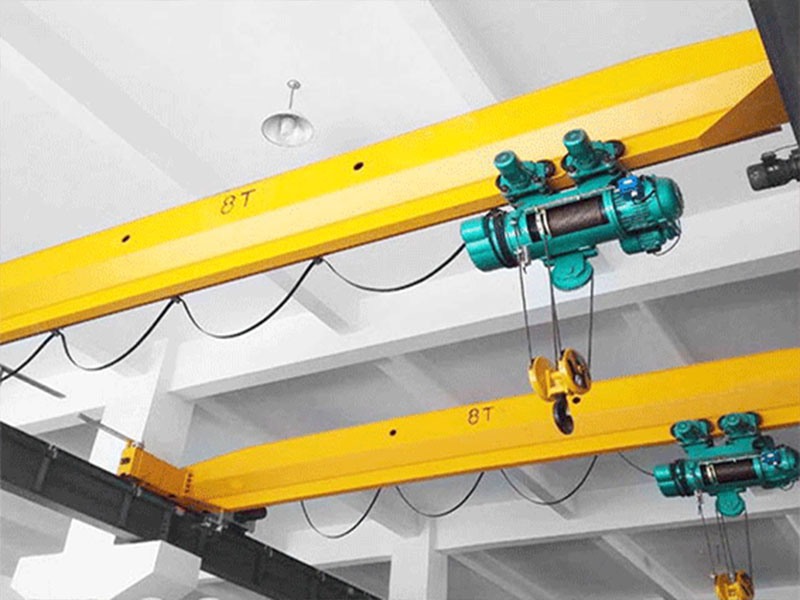

LD Hoist Overhead Crane For Sale is used in conjunction with CD1 and MD1 electric hoists, and its two ends are located on the concrete column or metal bracket of the factory building, and the shape is like a bridge.
Overhead Hoist Crane Single Girder has the advantages of compact appearance, light weight, low wheel pressure, stable running speed, low noise, and convenient installation and maintenance. It is suitable for use in warehouses, workshops, power stations and other places such as maintenance equipment and hoisting slings.
1. High quality automatic welding and NDT inspection
2. Whole length CNC cutting for complete web plate, high deflection accuracy
3. High tension bolts mounting between girder and legs, life time safety connection
4. Simple installation, convenient operation and maintenance, smooth operation, low noise
Loading Capacity | 0.5~20t |
Span | 3~32m |
Lifting Height | 3~35m or customized |
Lifting speed | Single speed: 3.5~8 m/min or customized |
Lifting mechanism | Wire rope hoist or electric chain hoist |
Work duty | A3~A5 |
Power supply | 220/230/380/400/415/440V/460-AC-3Phase-50/60Hz or as require |
Control method | Ground handle control(Push button),wireless remote control,cabinet control |
Application area | Factory,workshop,warehouse,power station,logistic,steel mill etc. |
Color | Red, yellow or customized |
Working temperature | -20~40° or as require |
Protection class | IP54; IP55; IP65 |
Safety device | Buffer,current overload protection,overload device,power failure protection, lifting height limit device,gravity limit device |
